Control de las obras del proyecto de construcción de la línea Sevilla – Cádiz
- Location: Cádiz, Spain
- Year: 2021 - In construction
- Client: Adif
Branch Railway to Bajo de la Cabezuela

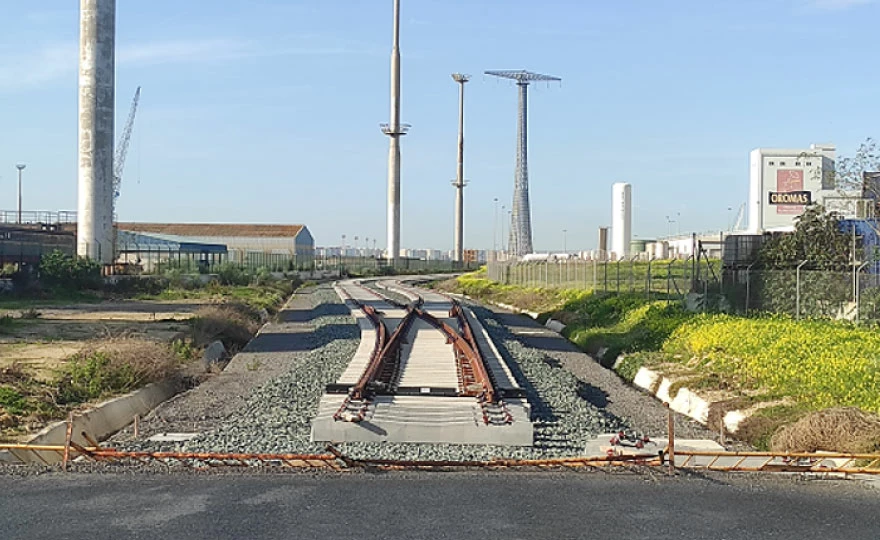

The construction of the access branch railway to Bajo de la Cabezuela, as part of the actions on the Seville-Cádiz High-Speed Line. It will connect the Muelle de la Cabezuela, where the Port Authority has already built a set of tracks for the transport of bulk cargo, with the general railway network.
With an investment of 7.3 million euros, the construction of this new branch railway is being carried out. The SOCOTEC team is in charge of the control of the works, which also include the traffic control, signaling, safety and telecommunications installations.

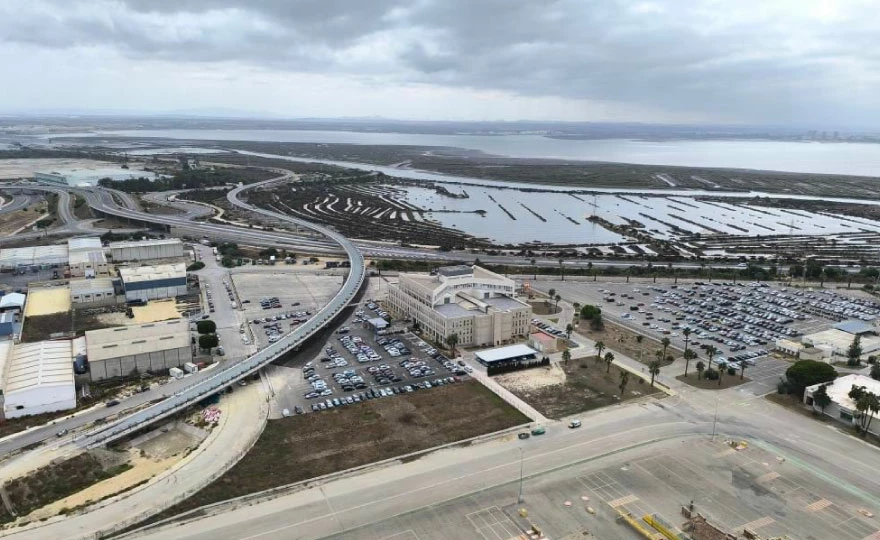

This new section of the Seville-Cádiz line, located between the Jerez de la Frontera Airport Station and Cádiz, will improve the rail connection and the operation of the Bay of Cádiz. In addition, it will boost the socio-economic development of the province and promote intermodality in transport.
Talk to our experts
TECHNICAL DATA
Technical characteristics of the new branch line
- Total length: 4.4 km.
- Geometric characteristics:
- Minimum radius of 250 m.
- Maximum ramp: 14 ‰.
- Minimum KV parameter of vertical alignment of 3,858.
- Platform width of 8.60 m.
- Maximum design speed of 60 km/h (limited to 35 km/h in the final section due to a level crossing).
- Structures:

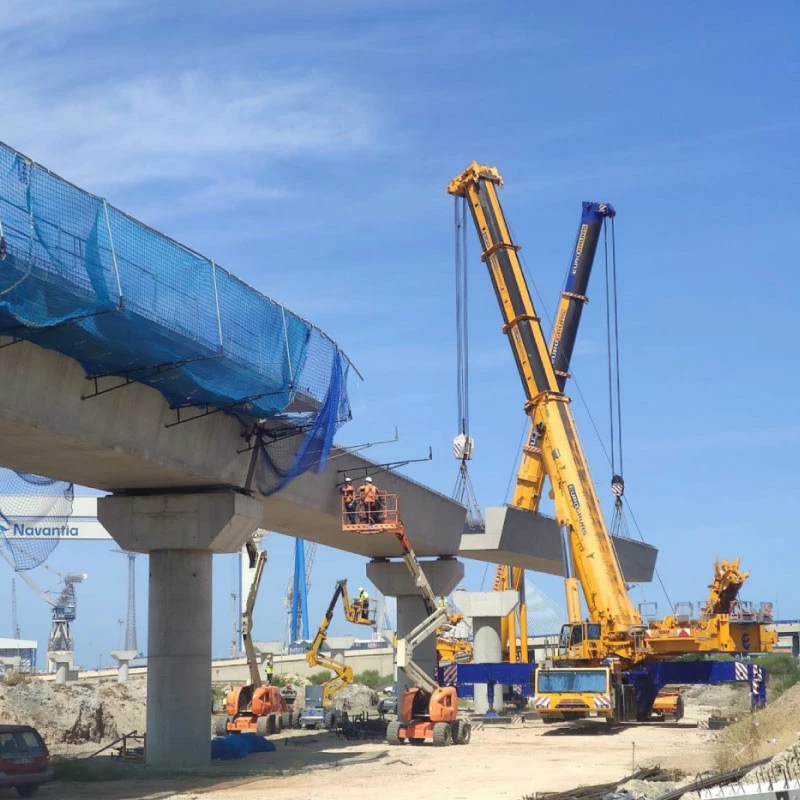

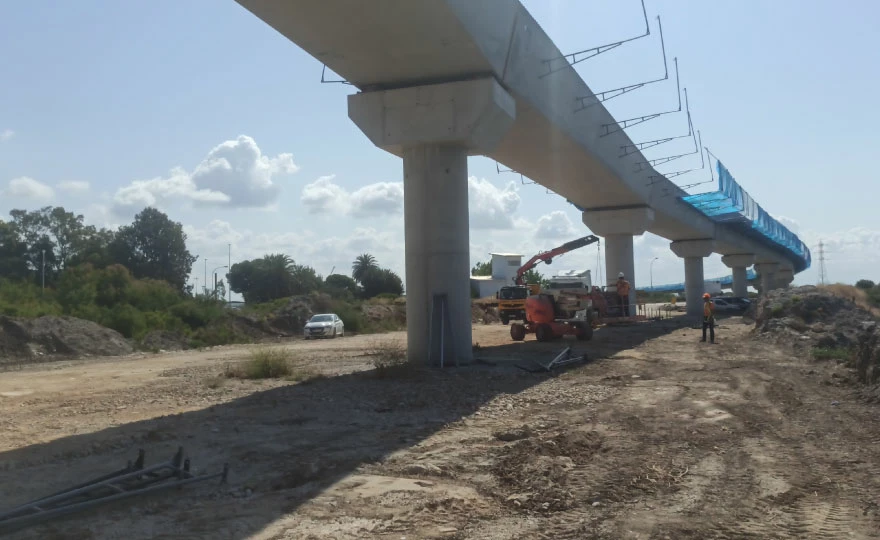

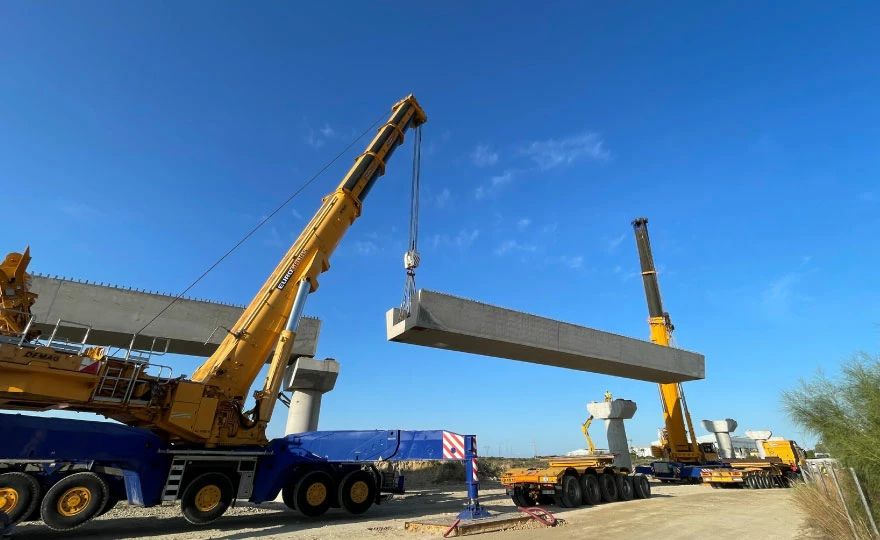

- Viaduct over the Natural Park of the Bay of Cádiz (1,209 m long).
- Protection slab of the Navantia service gallery (20.2 m long).

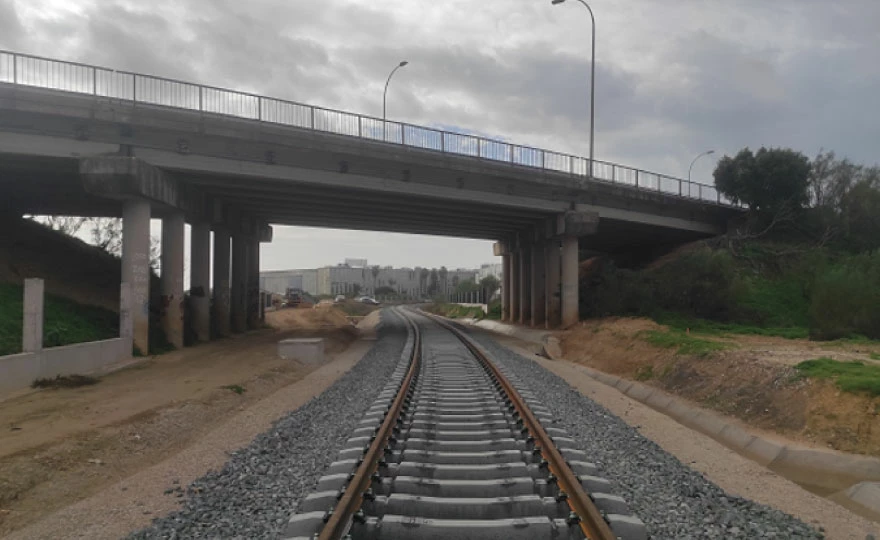

- Underpass (5 x 2.5 m frame) at PK 3+436 (10.00 m long).
- Others:
- Geotechnical treatments at viaduct abutments.
- Sanitary works with rockfill.
- Lateral canalizations for railway installations.
- Level crossing for access to Navantia.
- Dynamic weighing scale (PK 4+200).
- Restoration of the viaduct area in the Natural Park of the Bay of Cádiz.
- Total length: 4.4 km.
- Geometric characteristics:
- Minimum radius of 250 m.
- Maximum ramp: 14 ‰.
- Minimum KV parameter of vertical alignment of 3,858.
- Platform width of 8.60 m.
- Maximum design speed of 60 km/h (limited to 35 km/h in the final section due to a level crossing).
- Structures:
- Viaduct over the Natural Park of the Bay of Cádiz (1,209 m long).
- Protection slab of the Navantia service gallery (20.2 m long).
- Underpass (5 x 2.5 m frame) at PK 3+436 (10.00 m long).
- Others:
- Geotechnical treatments at viaduct abutments.
- Sanitary works with rockfill.
- Lateral canalizations for railway installations.
- Level crossing for access to Navantia.
- Dynamic weighing scale (PK 4+200).
- Restoration of the viaduct area in the Natural Park of the Bay of Cádiz.
Actions planned in the construction of the branch line
- Earthmoving.
- Structures and factory works.
- Replacement of road easements and affected services.
- Railway installations (traffic control, signaling, safety and fixed and mobile telecommunications).
- Corrective measures for environmental impact.
Environmental impact
The project includes an environmental analysis study that considers the environment (climate, geology, hydrology, vegetation, fauna and landscape) and proposes corrective measures to minimize the impact of the work on the Bay of Cádiz, including the restoration of the viaduct area in the Natural Park of the Bay of Cádiz.
The SOCOTEC team, with extensive experience in civil engineering, in works control and surveillance contracts, technical assistance to site management, safety and health coordination and technical inspections of infrastructures, will coordinate the works for the execution of the single track in ballast and RENFE gauge.
This line will be exclusively for freight traffic.
